What gear precision class can Wolfer achieve?

Wolfer routinely produces ISO 1328 Class 6 hobbed gears and ISO 1328 Class 5 ground gears. Class 5 requires gear-grinding after heat treatment and adds roughly 5–7 days to the lead time.

What is the maximum gear outside diameter?

Standard envelope is up to Ø 600 mm OD. For larger gears (up to Ø 1,200 mm) we use the large-machine bay at our Foshan plant — please share the drawing for a feasibility check.

Do you make plastic gears?

Yes — we machine acetal (POM) and PA66 nylon gears for low-noise, dry-running applications. We also injection-mold plastic gears via partner tooling for higher volumes.

PRODUCT · Couplings

Jaw / Spider Couplings

Name: Custom Precision Gears
Brand: Wolfer

Two hubs + an elastomer spider: damping, simple construction, easy mounting; the spider is replaceable (Shore A 80 / 92 / 98). JM is the zero-backlash servo series, LM the GB/T 5272 general series.

Download PDF datasheet → Request a Quote

Coupling Selector · Specifications

JM / LM Jaw Couplings selector

Choose a series by its drawing, then view dimensions and performance separately. Search, use the declared filters, or sort by any column.

Choose a series by drawing

Select a drawing to load its matching data

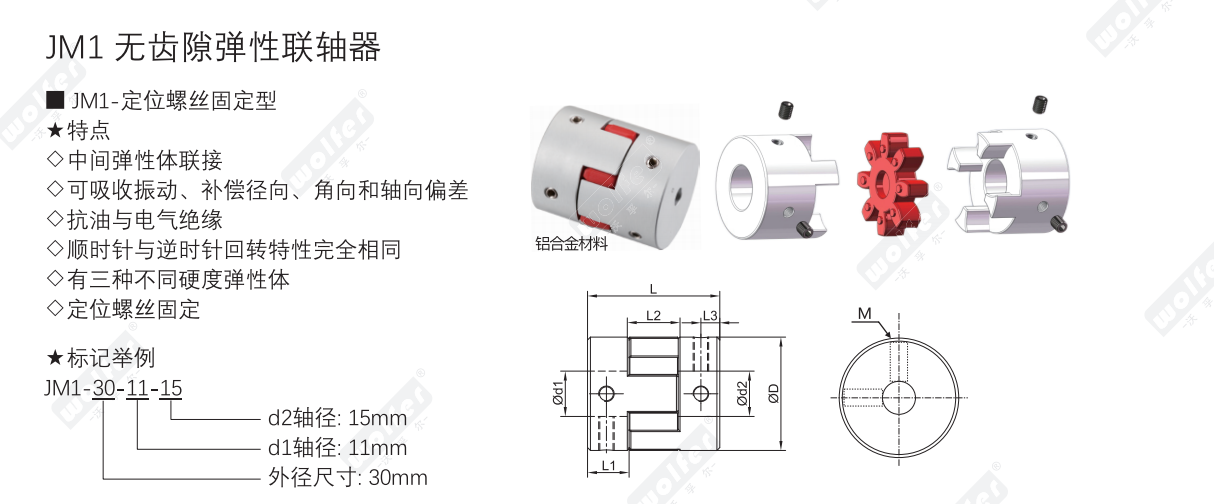

JM1 Series dimensional drawing — JM1 Series · Engineering drawing · PDF page 1

Parameter category

Data table

Model search

Dimensions and performance are shown separately. Sort by any column; consult the PDF catalogue for the full range, tolerances, and operating conditions. Download PDF catalogue ↗
