PRODUCT · Linear Motion

Milled helical rack

Helical racks · RH 19°31′42″ · milled teeth · 20° pressure angle; smooth and fairly quiet at lower cost — for medium-accuracy, higher-speed automation and conveyor drives.

Download PDF datasheet → Request a Quote

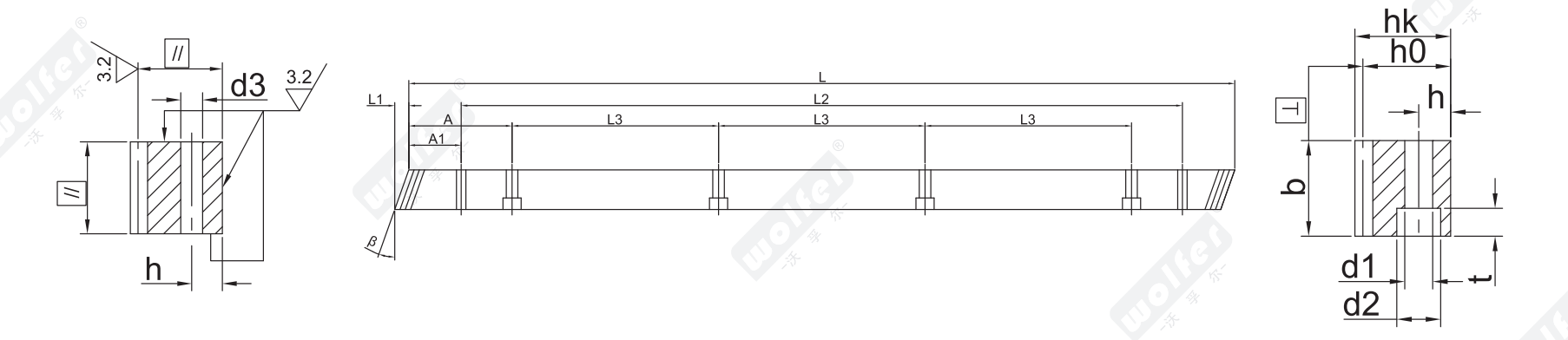

Milled helical rack dimension diagram
Rack dimension callouts · L / L3 / A / h / hk / h0 / d1 / d2 / d3 etc.

Specifications · Selector

Milled helical rack selector

All 34 standard sizes from the catalogue PDF. Search by code or filter by module and length. All dimensions in mm.

Helical rack · 19°31′42″ RH · milled · 20° pressure angle · smooth, quieter, lower cost · module 1–10 · standard length 500 / 1000 mm (butt-jointable) · for medium-precision, higher-speed automation & conveying
Milled helical rack selector
–

Click a column header to sort. Racks butt-joint to any length. Dimensions in mm. Source: Wolfer gear-rack catalogue. Download PDF catalogue ↗
