Ground straight rack

Straight racks · ground teeth · 20° pressure angle; ground flanks, high pitch accuracy, induction hardened — for laser-cutting gantries, CNC machine X/Y axes and other high-precision long-travel linear drives.

Download PDF datasheet → Request a Quote

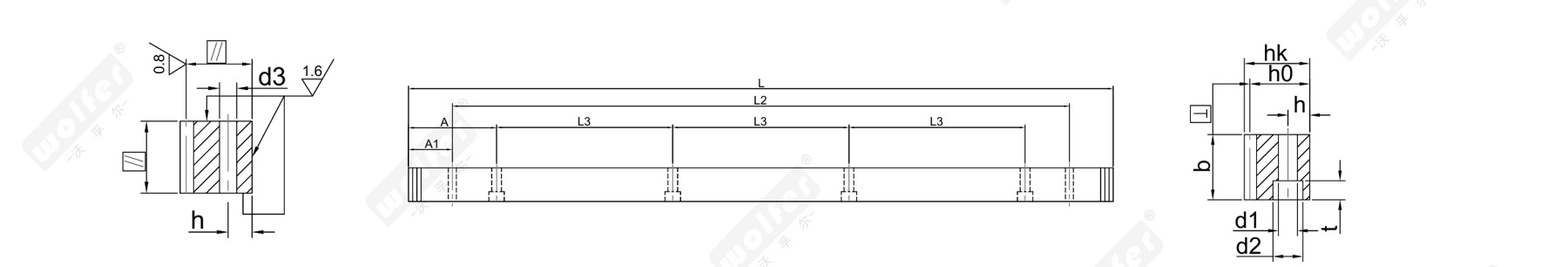

Ground straight rack dimension diagram
Rack dimension callouts · L / L3 / A / h / hk / h0 / d1 / d2 / d3 etc.

Specifications · Selector

Ground straight rack selector

All 34 standard sizes from the catalogue PDF. Search by code or filter by module and length. All dimensions in mm.

Straight rack · ground · 20° pressure angle · ground flanks, high pitch accuracy, induction-hardened · module 1–10 · standard length 500 / 1000 mm (butt-jointable) · for laser gantries, CNC X/Y axes
Ground straight rack selector
–

Click a column header to sort. Racks butt-joint to any length. Dimensions in mm. Source: Wolfer gear-rack catalogue. Download PDF catalogue ↗
