PRODUCT · Sprockets

Taper Bushed Sprockets

Sprockets for Taper-Lock bushing mounting: keyless quick fitting, fast on/off, good centering — one body fits many shaft sizes. The table lists teeth, OD, pitch diameter, hub dimensions per row count and matching bushing numbers.

Download PDF datasheet → Request a Quote

Specifications · Selector

Taper-bushed sprocket selector

All 47 standard sizes from the catalogue PDF across 5 chain sizes. Switch chain size with the tabs; search by model or filter by teeth. All dimensions in mm.

Select by chain size

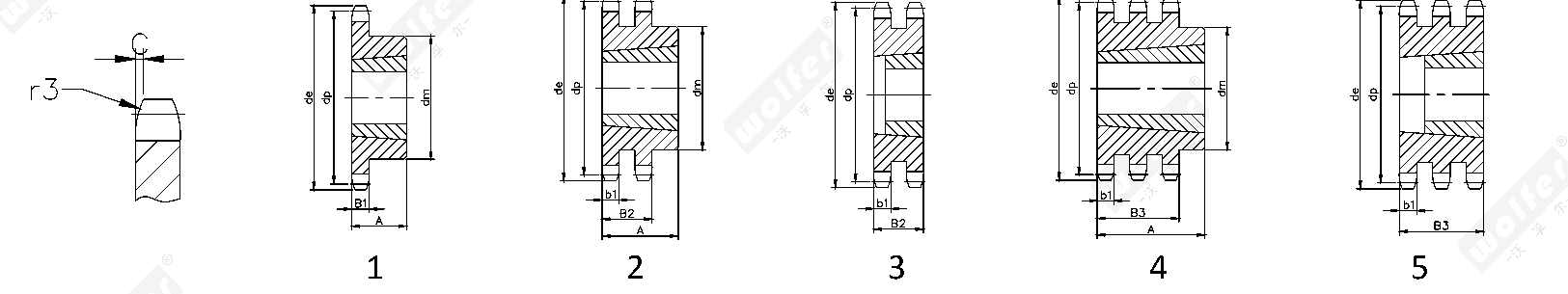

Types 1–5 · single / double / triple strand sections (all chain sizes)
Types 1–5 · single / double / triple strand sections (all chain sizes)

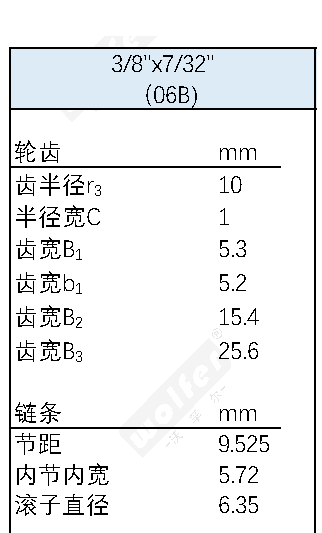

06B tooth & hub section
06B · tooth & hub section
Taper-bushed sprockets · DIN 8187 / ISO 606 · taper-bush mounting (matching bush no., quick fit) · hub Ø dm, strand spacing A, bush no. & type per single/double/triple (superscripts ¹ ² ³) · Model code: chain-teeth
–

Click a column header to sort. Superscripts ¹ ² ³ = single / double / triple strand. Dimensions in mm. Source: Wolfer sprocket catalogue. Download PDF catalogue ↗
