Product · Rotary motion

Sprockets

Roller-chain sprockets and custom industrial chain wheels — hardened teeth, custom hubs.

Wolfer manufactures single-, double-, and triple-strand roller chain sprockets in ANSI #25 through #240 (1/4 in to 3 in pitch — 6.35 to 76.2 mm). Tooth flanks are induction-hardened for wear life; hubs are turned to your shaft, keyway, and set-screw arrangement.

Request a Quote Talk to an engineer →
Wolfer sprockets

Gallery

Product Showcase

Click any category to open its datasheet (PDF). Categories without a photo are left blank.

Wolfer sprockets
Hub Sprockets Datasheet PDF →

Sprockets with an integral hub (boss) — the hub takes the bore, keyway and set-screw; rigid, mounts straight onto the shaft. Suited to driver / driven wheels in general chain drives.
Wolfer sprockets
Plate Sprockets Datasheet PDF →

Hubless flat-plate sprockets — thin, light and economical; welded or bolted to a flange or hub. Suited to large-diameter, driven, or custom-mounted chain drives.
Wolfer sprockets

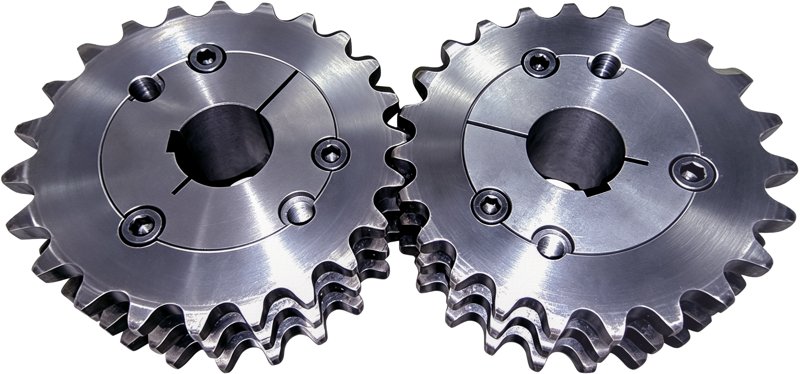

Taper Bushed Sprockets Datasheet PDF →

Mounted with a taper bushing (Taper-Lock) — keyless, quick to fit and remove, good concentricity, one body fits a range of shaft sizes. Suited to chain drives needing fast changeover and frequent service.

Also available: roller-chain parameters & drive design (PDF) →

What we make

Sprockets we cut from drawings.

Type A — plain disc

No hub — for shaft mounting via clamp / bushing

Type B — single hub

Hub on one side, plate on the other

Type C — double hub

Hub on both sides for heavier shafts

Type D — split hub

Removable hub on splined plate — for taper-bushing mount

Double / triple strand

Two- or three-strand sprockets for higher-power chains

Idler sprockets

With bearing bore — for tension idlers

Roller-chain sprockets are the workhorses of conveyors, packaging machinery, agricultural equipment, and amusement-park rides. We supply them in four hub styles (Type A = plain disc, B = hub one side, C = hub both sides, D = split / removable hub) and in custom tooth counts.

Tooth flanks are induction-hardened to HRC 50–55 — enough to keep the chain rollers riding on a hard surface for the life of the chain. Hub bores are reamed (or broached) to drawing, with set-screw flats, keyways, or shrink-fit interferences.

For non-standard chain pitches (large industrial roller chains, attachment-chain sprockets), send us the chain spec and we will cut a one-off.

Standards

Built to international tolerance specs.

  • ANSI B29.1 (roller chain & sprockets)
  • ISO 606
  • DIN 8187 / DIN 8188

Inspection

Every part measured before it ships.

  • Tooth-profile projector — pitch and root-radius verification
  • CMM — hub concentricity and runout
  • Hardness tester (Rockwell)

Applications

Where these parts go to work.

01 / 03

Industrial Automation

Conveyor drives, packaging line indexers

02 / 03

Machine Tools

Tool-change conveyors, indexing tables

03 / 03

Robotics

Lower-cost robot axes where some backlash is acceptable

FAQ

Common questions from engineers buying this product.

Can you make a sprocket for a non-standard chain?

Yes — send us the chain spec sheet (or the chain itself) and we'll cut a matching sprocket. Common requests: attachment chains, large agricultural chains, conveyor-specific chains.

Do you supply matched chain?

We focus on sprockets, but for full sprocket-and-chain sets we partner with major Chinese chain manufacturers such as Donghua. Tell us your duty cycle and we will recommend a chain grade.
