Milled straight rack

Straight racks · milled teeth · 20° pressure angle; simple and cost-effective (about Grade 7), for medium-accuracy linear motion in automation and general machinery.

Download PDF datasheet → Request a Quote
Milled straight rack dimension diagram

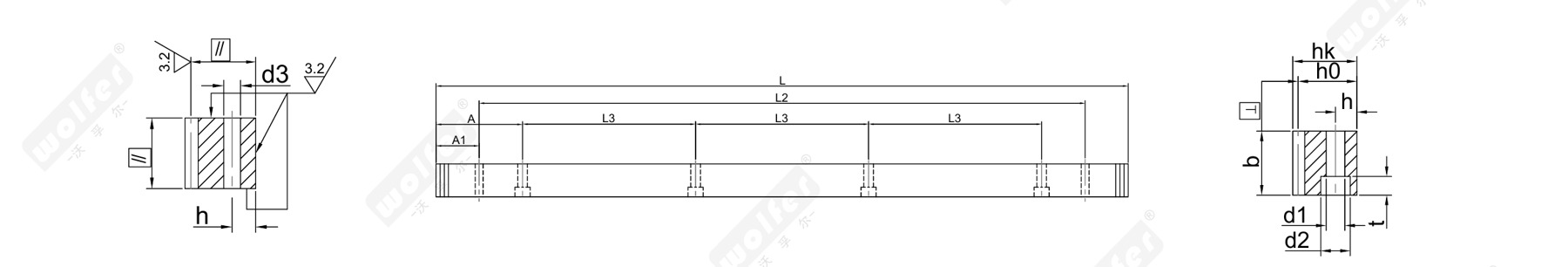

Rack dimension callouts · L / L3 / A / h / hk / h0 / d1 / d2 / d3 etc.

Specifications · Selector

Milled straight rack selector

All 34 standard sizes from the catalogue PDF. Search by code or filter by module and length. All dimensions in mm.

Straight rack · milled · 20° pressure angle · simple, cost-effective (approx. grade 7) · module 1–10 · standard length 500 / 1000 mm (butt-jointable) · for general automation & machinery
Milled straight rack selector
–

Click a column header to sort. Racks butt-joint to any length. Dimensions in mm. Source: Wolfer gear-rack catalogue. Download PDF catalogue ↗
