PRODUCT · Sprockets

Hub Sprockets

Name: Custom Precision Gears
Brand: Wolfer

Hub sprockets with a boss — the hub takes bores, keyways and set screws; rigid and shaft-ready. Made to GB/T 1243 / ISO 606 / DIN 8187 tooth forms, teeth can be induction hardened. The table lists teeth z, OD de, pitch dia. dp and hub dimensions for single / double / triple rows by chain number.

Download PDF datasheet → Request a Quote

Specifications · Selector

Hub sprocket selector

All 333 standard sizes from the catalogue PDF across 10 chain sizes. Switch chain size with the tabs; search by model or filter by teeth. All dimensions in mm.

Select by chain size

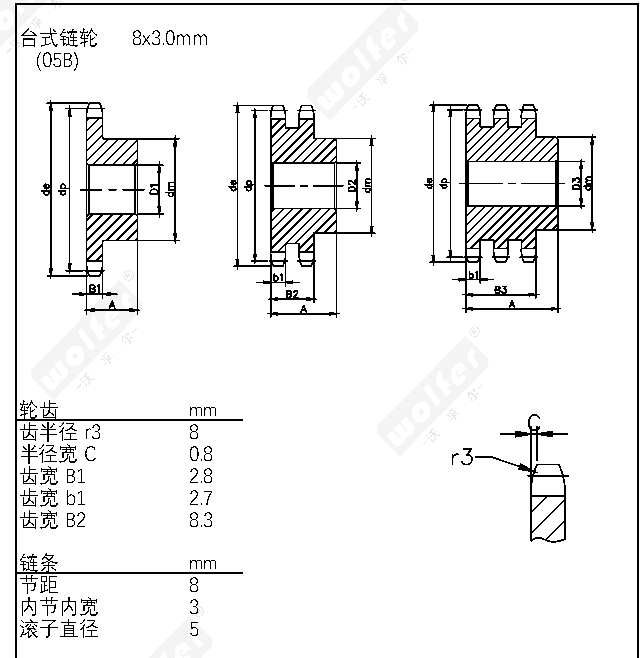

05B tooth & hub section — 05B · tooth & hub section

Hub sprockets · DIN 8187 / ISO 606 · single / double / triple strand (column superscripts ¹ ² ³) · de tip Ø · dp pitch Ø · dm hub Ø · D hub length · A strand spacing (mm) · Model code: chain-teeth

Model search

Teeth z

–

Click a column header to sort. Superscripts ¹ ² ³ = single / double / triple strand. Dimensions in mm. Source: Wolfer sprocket catalogue. Download PDF catalogue ↗
