What gear precision class can Wolfer achieve?

Wolfer routinely produces ISO 1328 Class 6 hobbed gears and ISO 1328 Class 5 ground gears. Class 5 requires gear-grinding after heat treatment and adds roughly 5–7 days to the lead time.

What is the maximum gear outside diameter?

Standard envelope is up to Ø 600 mm OD. For larger gears (up to Ø 1,200 mm) we use the large-machine bay at our Foshan plant — please share the drawing for a feasibility check.

Do you make plastic gears?

Yes — we machine acetal (POM) and PA66 nylon gears for low-noise, dry-running applications. We also injection-mold plastic gears via partner tooling for higher volumes.

PRODUCT · Sprockets

Plate Sprockets

Name: Custom Precision Gears
Brand: Wolfer

Hubless flat-plate sprockets — light, thin and economical; weld or bolt onto a flange / hub. The table lists tooth counts and D1 / D2 / D3 mounting dimensions by chain number; left and right columns cover different chain numbers.

Download PDF datasheet → Request a Quote

Specifications · Selector

Plate sprocket selector

All 709 standard sizes from the catalogue PDF across 10 chain sizes. Switch chain size with the tabs; search by model or filter by teeth. All dimensions in mm.

Select by chain size

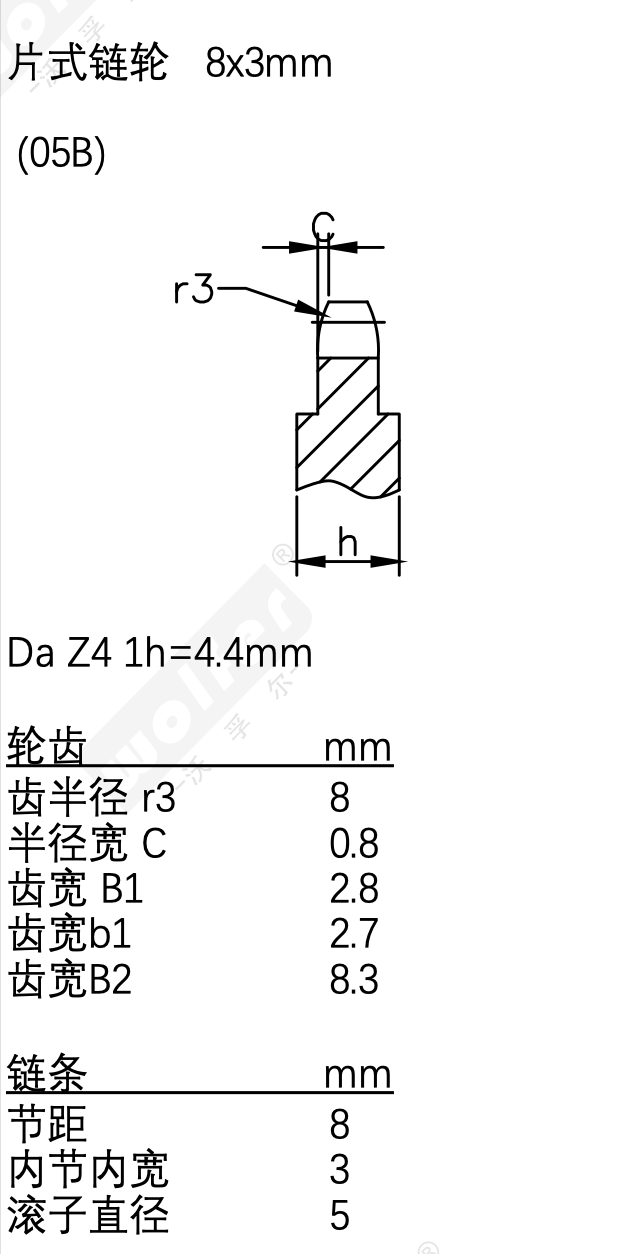

05B tooth & hub section · upper half — 05B · tooth & hub section

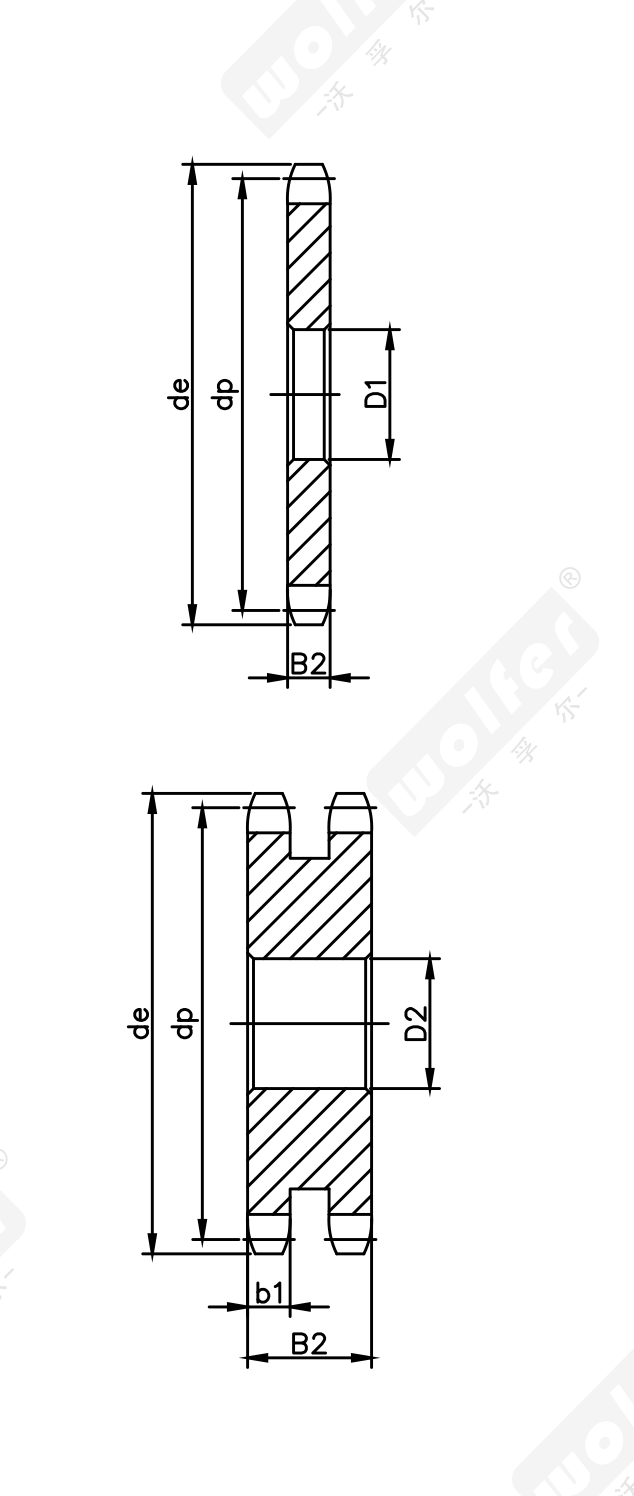

05B tooth & hub section · lower half — 05B · tooth & hub section

Plate (hubless) sprockets · DIN 8187 · single / double / triple strand · de tip Ø · dp pitch Ø · D1 / D2 / D3 = body thickness per strand count (mm) · Model code: chain-teeth

Model search

Teeth z

–

Click a column header to sort. Superscripts ¹ ² ³ = single / double / triple strand. Dimensions in mm. Source: Wolfer sprocket catalogue. Download PDF catalogue ↗
