PRODUCT · Synchronous Drive

Taper-bore HTD timing pulleys (5M/8M/14M)

Taper-bore (Taper-Lock bushed) HTD curvilinear timing pulleys, profiles 5M / 8M / 14M; high capacity, keyless quick mounting, accurate centering — for high-power synchronous drives.

Download PDF datasheet → Request a Quote

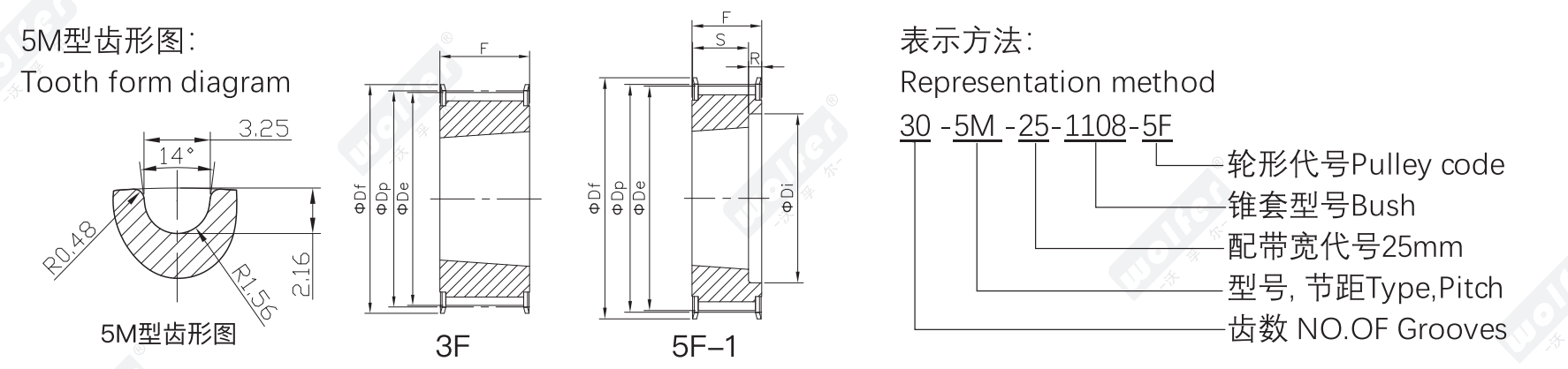

Taper-bore HTD timing pulley (5M/8M/14M) profile and dimension diagram
Tooth profile diagrams · designation · rim section dimensions øDp / øDe / øDf / øDm / F / L

Specifications · Selector

Taper-bore HTD pulley selector

All 148 standard sizes from the catalogue PDF. Switch tooth profile / pitch with the tabs; search by model or filter by teeth, material, bush no., type. All dimensions in mm.

Select by tooth profile / pitch

HTD curved tooth · pitch 5M / 8M / 14M · taper-bush mounting (matching bush no.) · cast iron / steel · Part code: teeth-profile-width-type
Taper-bore HTD pulley selector
–

Click a column header to sort. Dimensions in mm. Source: Wolfer timing-pulley catalogue. Download PDF catalogue ↗
