PRODUCT · Rotary Transmission

SPZ narrow V-belt pulleys

SPZ narrow V-belt pulley (Taper-Bush), reference diameter DP 63–630 mm, 1–6 grooves; mounts with a Taper-Lock bushing for keyless quick fitting.

Download the full PDF datasheet → Request a Quote

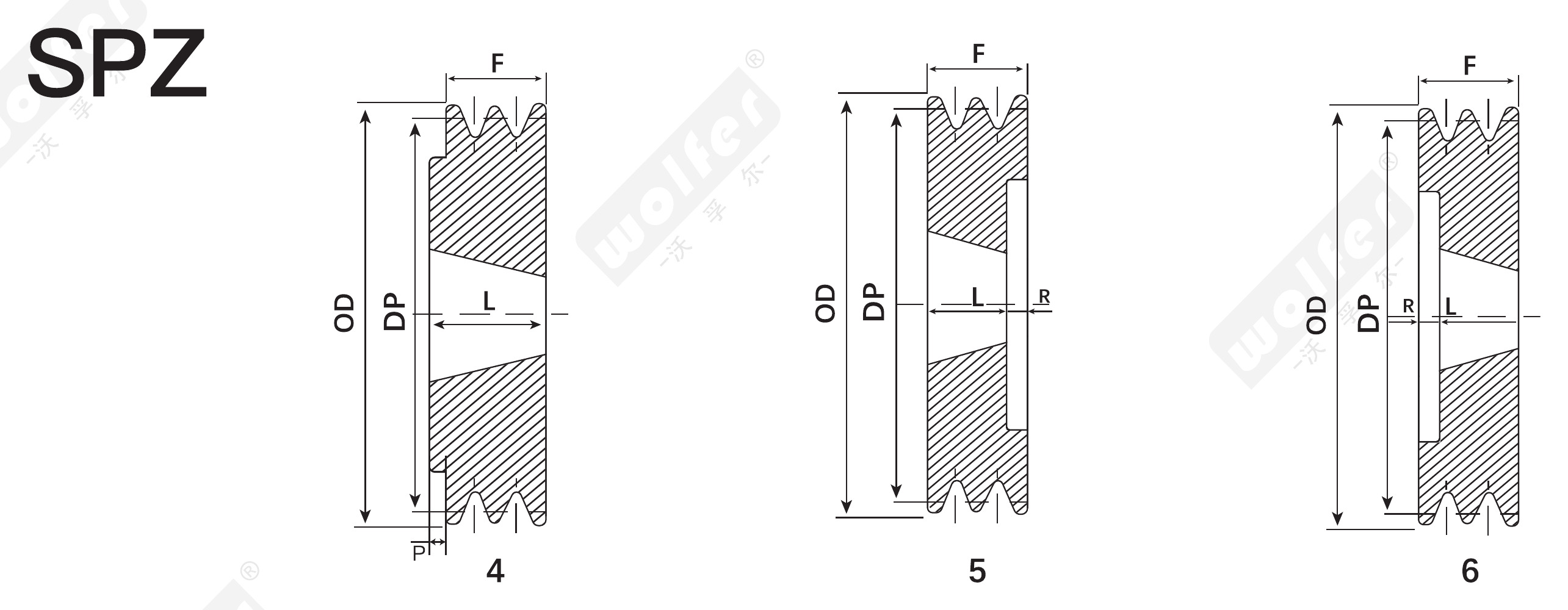

SPZ narrow V-belt pulley groove profile and dimension diagram
SPZ groove profile · reference diameter DP · outside diameter OD · TYPE legend

Specifications · Selector

SPZ narrow V-belt pulley selector

All 181 standard sizes from the catalogue PDF. Search by model or filter by grooves, datum Ø (DP), bush no. or type. All dimensions in mm.

DIN 2211 narrow V-belt pulley SPZ · taper-bush mounting (matching bush no., quick fit/removal) · cast iron · Model code: datum Ø × grooves (e.g. SPZ 90×3 = 90 mm datum, 3 grooves) · all dimensions in mm
SPZ narrow V-belt pulley selector
–

Click a column header to sort. Taper-bush mounting — specify bush no. and shaft bore. Source: Wolfer V-belt pulley catalogue. Download PDF catalogue ↗
