PRODUCT · Synchronous Drive

Taper-bore trapezoidal timing pulleys (L/H/XH)

Taper-bore (Taper-Lock bushed) trapezoidal timing pulleys, profiles L / H / XH; keyless quick mounting, good centering, repeatable removal — for high-power and frequently serviced synchronous drives.

Download PDF datasheet → Request a Quote

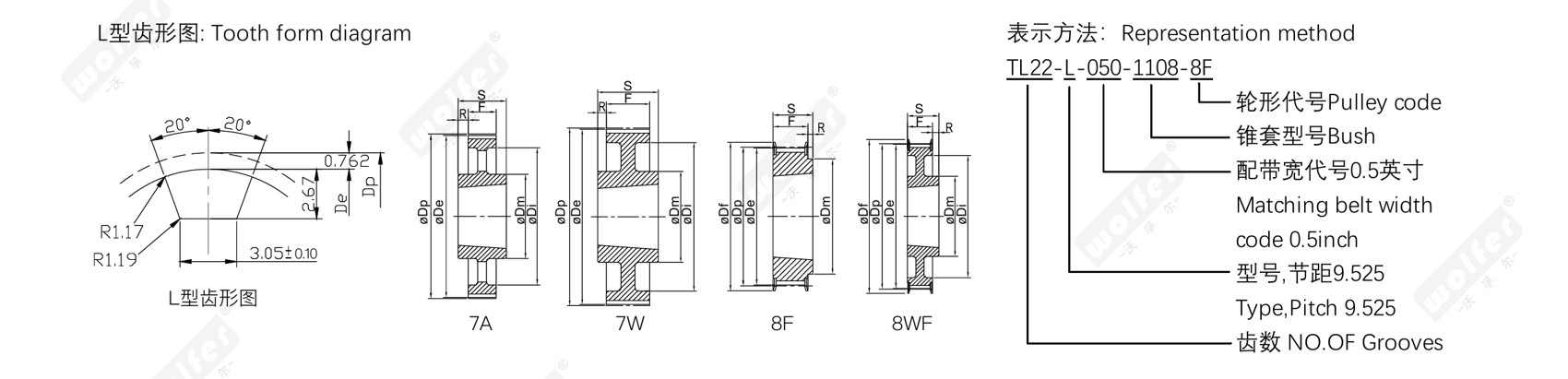

Taper-bore trapezoidal timing pulley (L/H/XH) profile and dimension diagram
Tooth profile diagrams · designation · rim section dimensions øDp / øDe / øDf / øDm / F / L

Specifications · Selector

Taper-bore trapezoidal pulley selector

All 198 standard sizes from the catalogue PDF. Switch tooth profile / pitch with the tabs; search by model or filter by teeth, material, bush no., type. All dimensions in mm.

Select by tooth profile / pitch

Trapezoidal (imperial) · pitch L / H / XH · taper-bush mounting (matching bush no.) · cast iron / steel · Part code: teeth-profile-width-type
Taper-bore trapezoidal pulley selector
–

Click a column header to sort. Dimensions in mm. Source: Wolfer timing-pulley catalogue. Download PDF catalogue ↗
