PRODUCT · Overload Protection

Sprocket Friction Torque Limiters

CTL sprocket friction safety couplings (torque-limiting) slip on overload while providing shaft-to-shaft drive; combine with steel disc couplings, tolerate temperatures up to 280 ℃, and use spacers of different lengths to suit shaft spacing. Torque range 2.9–1080 N·m.

Download PDF datasheet → Request a Quote

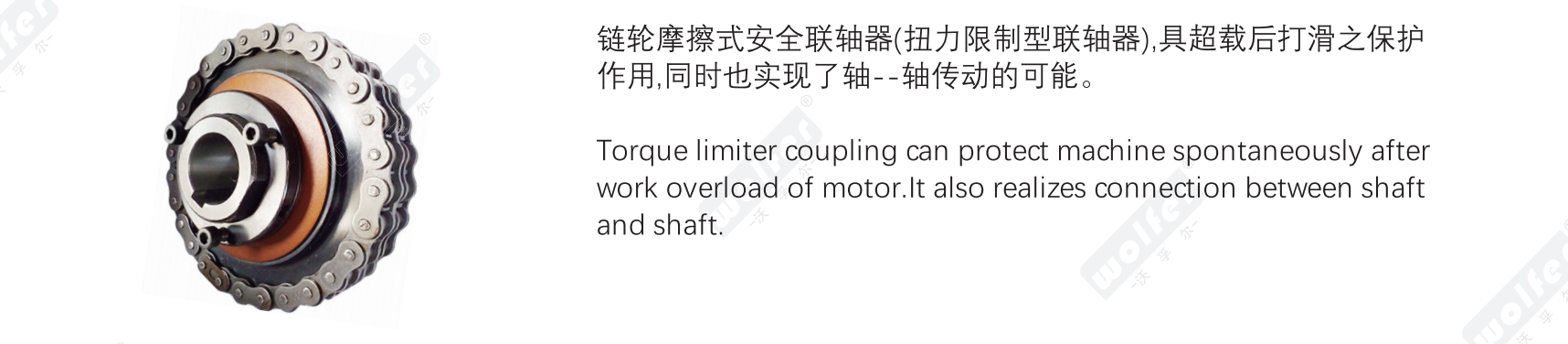

CTL sprocket friction safety coupling product and function overview

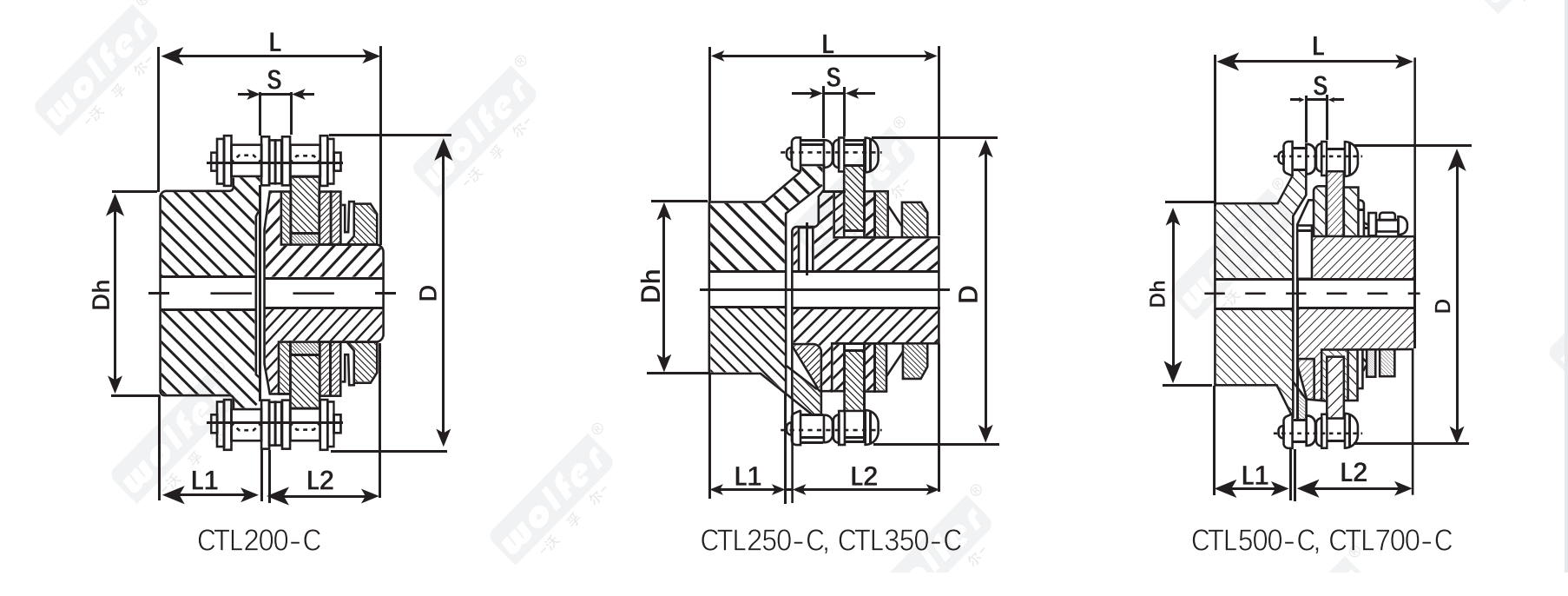

Sprocket friction safety coupling dimension diagram
CTL200-C / CTL250-C·CTL350-C / CTL500-C·CTL700-C section · D / Dh / L / L1 / L2 / S

Specifications · Selector

Sprocket friction safety coupling specifications

Filter by the conditions below, or search and click a column header to sort; request a quote in one click. Dimensions per catalogue.

Click a column header to sort · one-click quote · full range & tolerances per PDF catalogue. Download PDF catalogue ↗
