PRODUCT · Overload Protection

Flexible Torque Limiter Couplings

The CTX flexible safety coupling is a torsionally elastic torque limiter — axial plug-in mounting, compensates misalignment, and damps shock and vibration; slip torque adjusts directly on the machine, slipping on overload to protect it. Finished bores toleranced H7 (ISO), keyway width JS9. Torque range 2.9–1080 N·m.

Download PDF datasheet → Request a Quote

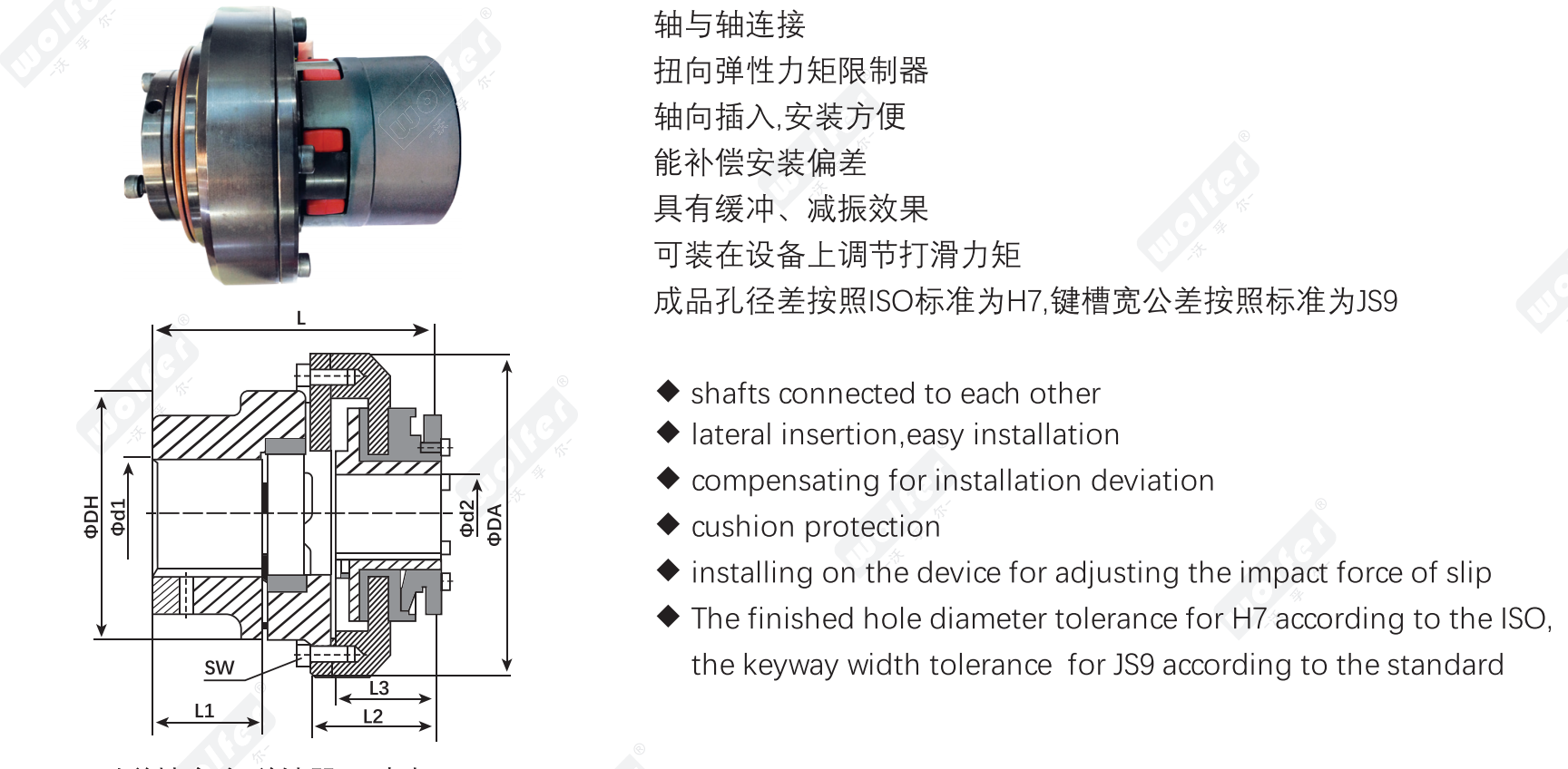

CTX flexible safety coupling product, features and dimension diagram
Section dimensions · L / ΦDH / Φd1 / Φd2 / ΦDA / SW / L1 / L2 / L3

Specifications · Selector

Flexible safety coupling specifications

Filter by the conditions below, or search and click a column header to sort; request a quote in one click. Dimensions per catalogue.

Click a column header to sort · one-click quote · full range & tolerances per PDF catalogue. Download PDF catalogue ↗
