PRODUCT · Overload Protection

Ball Detent Torque Limiters

WFSC ball-detent torque limiters (safety clutches) transmit torque backlash-free for their entire service life — compact, easy to adjust, low inertia. On overload the balls cam out of their detents and the unit slips; a signal ring can trip a switch to cut power and protect the machine. For servo / stepper and other high-dynamic precision drives needing overload protection. 8 sizes; L / M / H trip-torque stages cover 4–2400 N·m.

Download PDF datasheet → Request a Quote

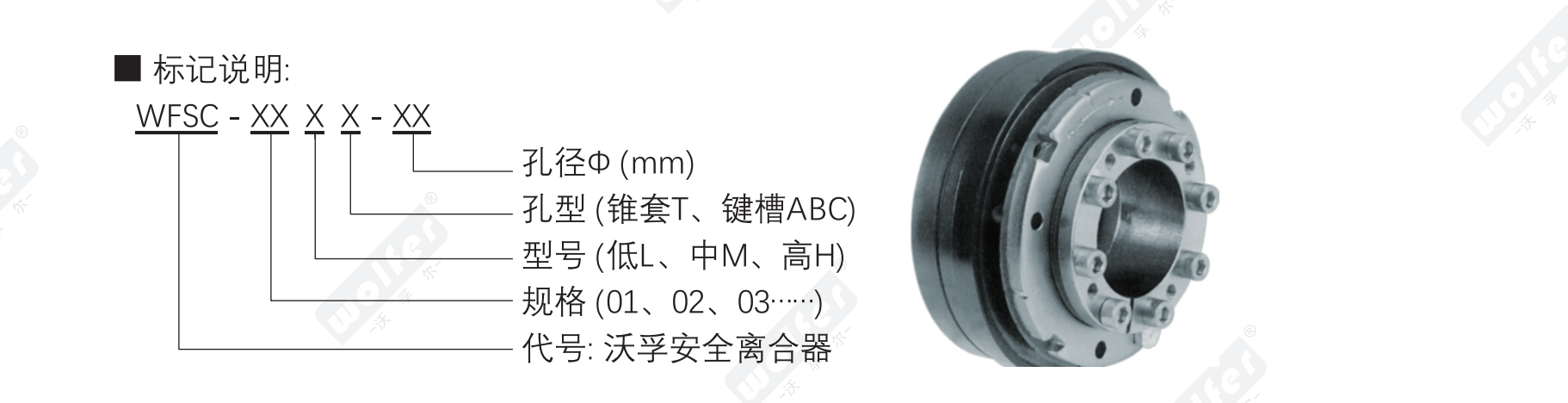

WFSC ball-detent torque limiter model designation and product overview

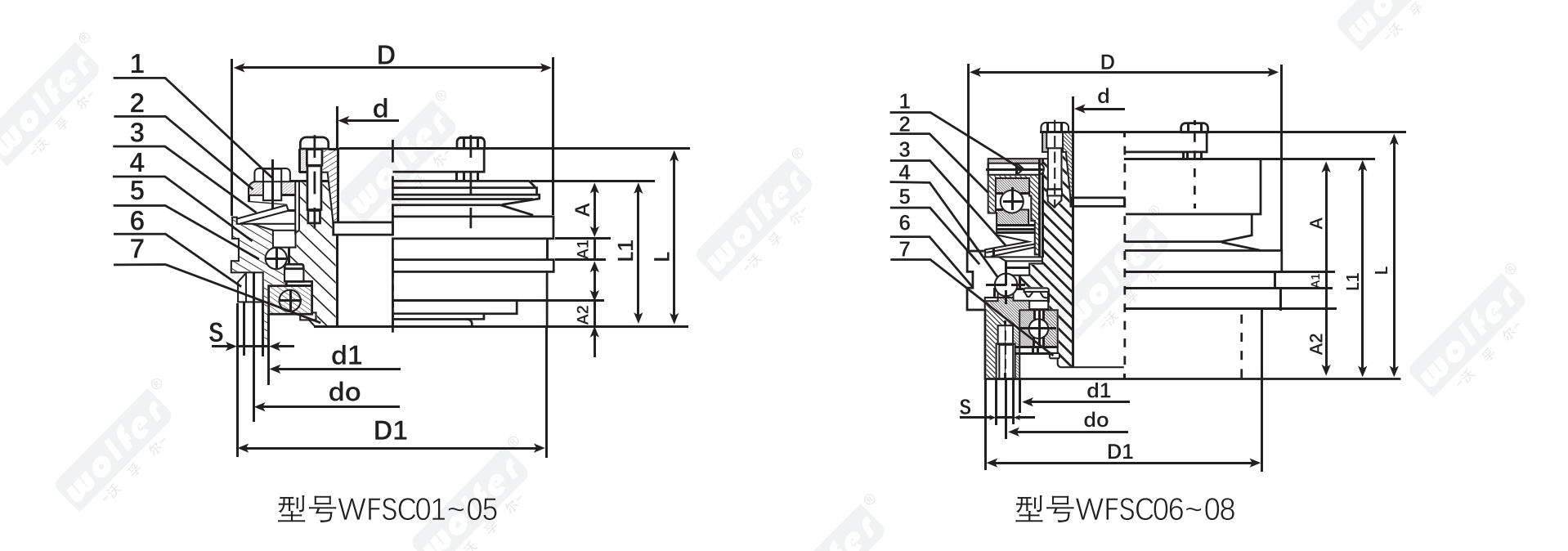

Ball-detent torque limiter dimension diagram
WFSC01–05 and WFSC06–08 sections · principal dimensions D / d / A / A1 / A2 / L / L1 / S

Specifications · Selector

Ball-detent torque limiter specifications

Filter by the conditions below, or search and click a column header to sort; request a quote in one click. Dimensions per catalogue.

Click a column header to sort · one-click quote · full range & tolerances per PDF catalogue. Download PDF catalogue ↗
